3D structured light
HND Series | HNH Series | HNR Series | HNS Series
Hunson® 3D Camera
A highly integrated 3D structured light scanning system can complete a full-surface scan without moving the camera or with the object being measured stationary. This reduces the cost of mechanism design and hardware configuration. Installation, adjustment, and maintenance are also simpler.

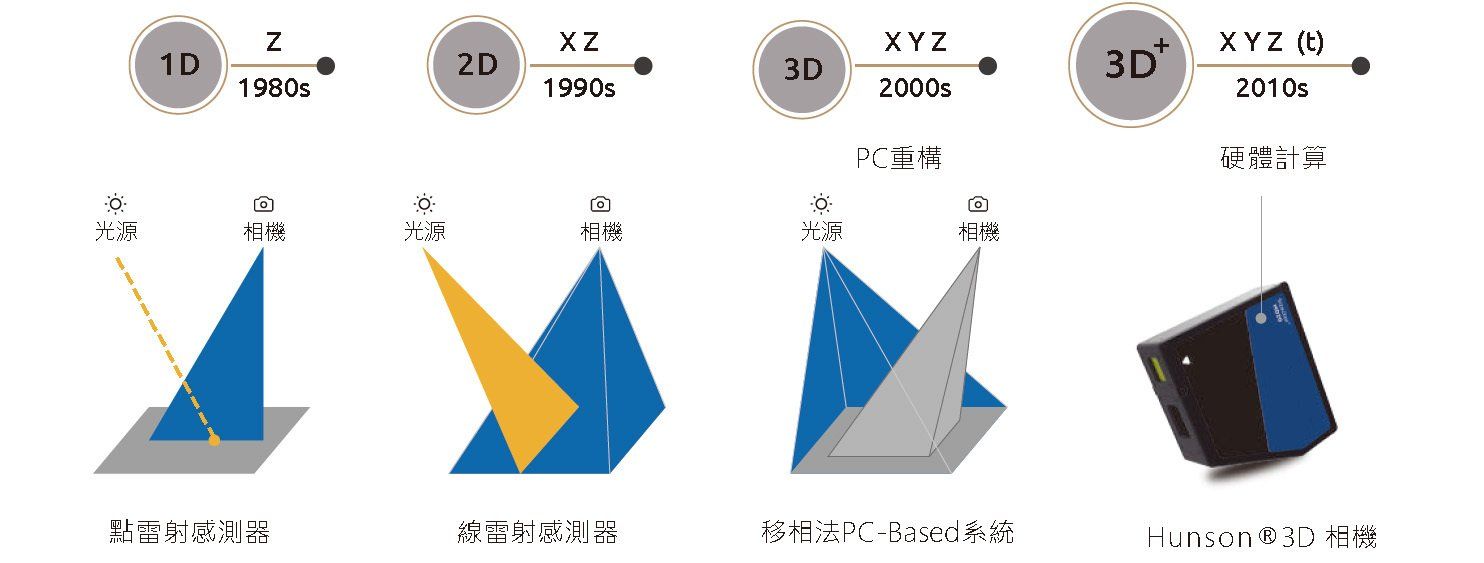

Phase-shifting structured light technology
The best 3D sensing solution on the market, industry-leading speed and accuracy. From 3D to 3D , comprehensively enhancing core competitiveness. The Hunson® 3D camera uses phase-shifting structured light technology. The basic principle of this technology is to project a series of 2D patterns containing specific spatial phases onto the object being measured, while simultaneously photographing the object. The resulting images are then subjected to phase analysis, and the information is calculated based on the feedback coordinate data to reconstruct 3D data. Line laser technology and phase-shifting structured light technology are both based on the principle of triangulation, therefore their accuracy is similar. Because structured light technology projects light onto an entire surface, it can generate 3D data without the need for moving or stitching.
Hunson® HND Series
The Hunson® HND series 3D cameras feature hardware parallel computing technology, a system architecture optimized for structured light technology, and a high-resolution CMOS sensor, enabling them to capture images with a resolution of up to 3.2 megapixels, meeting customers' needs for high-resolution image output for X and Y direction measurement or positioning.
▶ Product Parameters
Hunson® HND series high-resolution 3D cameras
| Equipment parameters | HND20 | HND40 | HND80 | HND180 | HND600 |
|---|---|---|---|---|---|
| Maximum scan speed | 2.1FPS | 2.1FPS | 2.1FPS | 2.1FPS | 2.1FPS |
| Image resolution (MPixel) | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 |
| Center distance (mm) | 110 | 110 | 160 | 414 | 1500 |
| Standard field of view (FOV) (mm) | 20x15 | 40x30 | 80x60 | 180x135 | 600x450 |
| Z-axis measurement range (mm) | ±2.5 | ±10 | ±20 | ±45 | ±300 |
| Z-axis repeatability σ (μm) | 1 | 1 | 1 | 3 | 75 |
| light source | blue LED | blue LED | blue LED | blue LED | blue LED |
| Dimensions (mm) | 156x169x49 | 156x169x49 | 156x174x49 | 156x268x49 | 156x343x49 |
| Weight (kg) | 1.35 | 1.35 | 1.5 | 1.9 | 2.3 |
| Data interface | USB3.0 | USB3.0 | USB3.0 | USB3.0 | USB3.0 |
| I/O Import | 2-channel non-polarized level signal input (12/24V compatible) | 2-channel non-polarized level signal input (12/24V compatible) | 2-channel non-polarized level signal input (12/24V compatible) | 2-channel non-polarized level signal input (12/24V compatible) | 2-channel non-polarized level signal input (12/24V compatible) |
| I/O Export | 4-channel non-polarized switch signal output (12/24V compatible) | 4-channel non-polarized switch signal output (12/24V compatible) | 4-channel non-polarized switch signal output (12/24V compatible) | 4-channel non-polarized switch signal output (12/24V compatible) | 4-channel non-polarized switch signal output (12/24V compatible) |
| Scanning software | SDK or Light 3D Inspection Software | SDK or Light 3D Inspection Software | SDK or Light 3D Inspection Software | SDK or Light 3D Inspection Software | SDK or Light 3D Inspection Software |
| SDK | YES | YES | YES | YES | YES |
| - Development Platform | C, C , .Net | C, C , .Net | C, C , .Net | C, C , .Net | C, C , .Net |
| - Sample Program | Provide SDK and Sample Code | Provide SDK and Sample Code | Provide SDK and Sample Code | Provide SDK and Sample Code | Provide SDK and Sample Code |
| Operating voltage | 12V | 12V | 12V | 12V | 12V |
| Operating current | 5A | 5A | 5A | 5A | 5A |
| Operating temperature | 0-40℃ | 0-40℃ | 0-40℃ | 0-40℃ | 0-40℃ |
| Storage temperature | 0-60℃ | 0-60℃ | 0-60℃ | 0-60℃ | 0-60℃ |
| Operating humidity | 20%~80% (non-condensing) | 20%~80% (non-condensing) | 20%~80% (non-condensing) | 20%~80% (non-condensing) | 20%~80% (non-condensing) |
| Standard accessories | Power supply, 3m USB cable, 3m I/O cable | Power supply, 3m USB cable, 3m I/O cable | Power supply, 3m USB cable, 3m I/O cable | Power supply, 3m USB cable, 3m I/O cable | Power supply, 3m USB cable, 3m I/O cable |
The measurement reference plane is the four corners of the field of view, using the original manufacturer's standard film.
Hunson® HNH series high-speed 3D cameras
Hunson® HNH series 3D cameras employ hardware parallel computing technology, making them particularly suitable for high-speed inspection needs, such as flatness, height, and step difference.
▶ Product Parameters
Hunson® HNH series high-speed 3D cameras
| Equipment parameters | HNH40 | HNH180 |
|---|---|---|
| Maximum scan speed | 13.5FPS | 13.5FPS |
| Image resolution (MPixel) | 0.4 | 0.4 |
| Center distance (mm) | 110 | 414 |
| Standard field of view (FOV) (mm) | 40x30 | 180x135 |
| Z-axis measurement range (mm) | ±10 | ±45 |
| Z-axis repeatability σ (μm) | 1 | 3 |
| light source | blue LED | blue LED |
| Dimensions (mm) | 156x169x49 | 156x268x49 |
| Weight (kg) | 1.35 | 1.9 |
| Data interface | USB3.0 | USB3.0 |
| I/O Import | 2-channel non-polarized level signal input (12/24V compatible) | 2-channel non-polarized level signal input (12/24V compatible) |
| I/O Export | 4-channel non-polarized switch signal output (12/24V compatible) | 4-channel non-polarized switch signal output (12/24V compatible) |
| Scanning software | SDK or Light 3D Inspection Software | SDK or Light 3D Inspection Software |
| SDK | YES | YES |
| - Development Platform | C, C , .Net | C, C , .Net |
| - Sample Program | Provide SDK and Sample Code | Provide SDK and Sample Code |
| Operating voltage | 12V | 12V |
| Operating current | 5A | 5A |
| Operating temperature | 0-40℃ | 0-40℃ |
| Storage temperature | 0-60℃ | 0-60℃ |
| Operating humidity | 20%~80% (non-condensing) | 20%~80% (non-condensing) |
| Standard accessories | Power supply, 3m USB cable, 3m I/O cable | Power supply, 3m USB cable, 3m I/O cable |
Hunson® 3D camera HNR series random grabbing applications
The HNR series employs image enhancement algorithms, significantly improving its ability to resist ambient light interference, resulting in more complete imaging and making it more suitable for bin-pick applications.
▶ Product Parameters
Hunson® 3D Camera HNR Series
| Equipment parameters | HNR600 |
|---|---|
| Maximum scan speed | 5FPS |
| Image resolution (MPixel) | 0.4 |
| Center distance (mm) | 1500 |
| Standard field of view (FOV) (mm) | 600x450 |
| Z-axis measurement range (mm) | ±300 |
| Z-axis repeatability σ (μm) | 75 |
| light source | blue LED |
| Dimensions (mm) | 156x343x49 |
| Weight (kg) | 2.3 |
| Data interface | USB3.0 |
| I/O Import | 2-channel non-polarized level signal input (12/24V compatible) |
| I/O Export | 4-channel non-polarized switch signal output (12/24V compatible) |
| Scanning software | SDK or Light 3D Inspection Software |
| SDK | YES |
| - Development Platform | C, C , .Net |
| - Sample Program | Provide SDK and Sample Code |
| Operating voltage | 12V |
| Operating current | 5A |
| Operating temperature | 0-40℃ |
| Storage temperature | 0-60℃ |
| Operating humidity | 20%~80% (non-condensing) |
| Standard accessories | Power supply, 3m USB cable, 3m I/O cable |
Hunson® 3D Camera HNS Series
With powerful performance and high speed, the HNS series can reach up to 20.3 FPS, at least twice that of other similar products. It also boasts high accuracy, with single-point repeatability 20 times higher than the HD series and area repeatability more than doubled. Users have more options and can more flexibly achieve imaging effects tailored to their applications through parameter settings.
Instant Automatic HDR (Patented Technology)
The HNS series features high sensitivity and an ultra-wide dynamic range, enabling it to capture differences in the reflectivity of the subject and achieve real-time self-adjustment of camera parameters during single-frame shooting, i.e., real-time automatic HDR.
When using this function to photograph different products, or similar products with individual or batch differences, no manual parameter adjustment is required, which greatly advances the project process and redefines the implementation of 3D vision projects!
Rich hardware features
The HNS series integrates hardware algorithm circuitry to perform post-processing functions for camera point clouds, including noise reduction, patching, and flypoint removal; the newly added hardware RT matrix transformation function facilitates image stitching; and the new range checking function can filter out invalid point clouds, saving computing resources!
Stable, safe and reliable
The HNS series can meet the electromagnetic compatibility requirements of both laboratories and production lines, and features a highly reliable communication protocol that ensures no frame loss even after unplugging and replugging!
▶ Product Parameters
Hunson® 3D Camera HNS Series
| Equipment parameters | HNS-028040 | HNS-028060 | HNS-028120 |
|---|---|---|---|
| Full-cycle frame rate | ≤20.3FPS(@0.7M) | ≤20.3FPS(@0.7M) | ≤20.3FPS(@0.7M) |
| Data resolution | ≤8.7FPS(@2.8M) | ≤8.7FPS(@2.8M) | ≤8.7FPS(@2.8M) |
| Center distance (mm) | 2.8M/0.7M | 2.8M/0.7M | 2.8M/0.7M |
| Standard field of view (FOV) (mm) | 95 | 160 | 200 |
| Z-axis single-point repeatability (µm) | 40*30.3 | 60*45.4 | 120*90.8 |
| Z-axis repeatability (µm) | ±8 | ±10 | ±30 |
| Z-axis measurement range (mm) | 0.5 | 0.6 | 1.2 |
| light source | 0.05 | 0.05 | 0.11 |
| Dimensions (mm) | 146*180*53.5 | 146*210*53.5 | 146*225*53.5 |
| Weight (kg) | 1.9 | 2.1 | 2.1 |
| light source | Blue LED | Blue LED | Blue LED |
| Data interface | USB3.0 | USB3.0 | USB3.0 |
| Partner vendor interface | GenICamTL | GenICamTL | GenICamTL |
| I/O Input/Output | 2-channel non-polarized level signal input/switch signal output (12/24V compatible) | 2-channel non-polarized level signal input/switch signal output (12/24V compatible) | 2-channel non-polarized level signal input/switch signal output (12/24V compatible) |
| Operating voltage/current | 24V / 5A | 24V / 5A | 24V / 5A |
| SDK Workflow | Linux / Windows 7、8、10 | Linux / Windows 7、8、10 | Linux / Windows 7、8、10 |
| SDK supported programming languages | C / C / C# | C / C / C# | C / C / C# |
| Operating temperature | 0~40℃ | 0~40℃ | 0~40℃ |
| Storage temperature | 0~60℃ | 0~60℃ | 0~60℃ |
| Operating humidity | 20%~80% (non-condensing) | 20%~80% (non-condensing) | 20%~80% (non-condensing) |
| Standard accessories | 3m high-flexibility USB cable, 3m power and I/O cable | 3m high-flexibility USB cable, 3m power and I/O cable | 3m high-flexibility USB cable, 3m power and I/O cable |
| Equipment parameters | HNS-028240 | HNS-028360 | HNS-028800 |
|---|---|---|---|
| Full-cycle frame rate | ≤20.3FPS(@0.7M) | ≤20.3FPS(@0.7M) | ≤20.3FPS(@0.7M) |
| Data resolution | ≤8.7FPS(@2.8M) | ≤8.7FPS(@2.8M) | ≤8.7FPS(@2.8M) |
| Center distance (mm) | 2.8M/0.7M | 2.8M/0.7M | 2.8M/0.7M |
| Standard field of view (FOV) (mm) | 423 | 1050 | 1500 |
| Z-axis single-point repeatability (µm) | 240*181.7 | 360*253.6 | 800*605.8 |
| Z-axis repeatability (µm) | ±60 | ±90 | 600，-1400 |
| Z-axis measurement range (mm) | 2.3 | 5.6 | 58.2 |
| light source | 0.21 | 0.41 | 9.54 |
| Dimensions (mm) | 146*275*53.5 | 146*404*53.5 | 146*412*53.5 |
| Weight (kg) | 2.4 | 2.9 | 3.1 |
| light source | Blue LED | Blue LED | Blue LED |
| Data interface | USB3.0 | USB3.0 | USB3.0 |
| Partner vendor interface | GenICamTL | GenICamTL | GenICamTL |
| I/O Input/Output | 2-channel non-polarized level signal input/switch signal output (12/24V compatible) | 2-channel non-polarized level signal input/switch signal output (12/24V compatible) | 2-channel non-polarized level signal input/switch signal output (12/24V compatible) |
| Operating voltage/current | 24V / 5A | 24V / 5A | 24V / 5A |
| SDK Workflow | Linux / Windows 7、8、10 | Linux / Windows 7、8、10 | Linux / Windows 7、8、10 |
| SDK supported programming languages | C / C / C# | C / C / C# | C / C / C# |
| Operating temperature | 0~40℃ | 0~40℃ | 0~40℃ |
| Storage temperature | 0~60℃ | 0~60℃ | 0~60℃ |
| Operating humidity | 20%~80% (non-condensing) | 20%~80% (non-condensing) | 20%~80% (non-condensing) |
| Standard accessories | 3m high-flexibility USB cable, 3m power and I/O cable | 3m high-flexibility USB cable, 3m power and I/O cable | 3m high-flexibility USB cable, 3m power and I/O cable |
