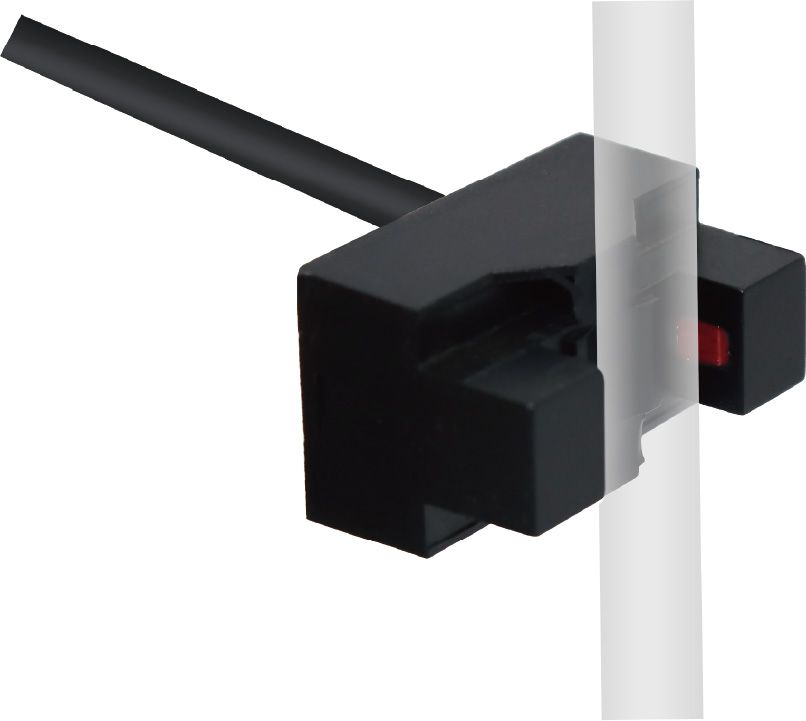

Photoelectric liquid level sensor
▶ Product Features
- Equipped with output action switching and sensitivity switching functions, this liquid level sensor offers greater ease of use.
- One-click setup makes sensors smarter
- Suitable for transparent and semi-transparent conduits with a diameter of 6~13mm and a thickness of 1mm, using environmentally friendly wires (without powder stripping agent).
▶ Product Specifications
| model | H3F-SPX613/H3F-SPX613P |
|---|---|
| Applicable catheters | Transparent catheters with an outer diameter of 6-13 mm (1 mm thickness) (made of FEP (fluoropolymer) or a material with equivalent transparency) |
| Standard test object | The liquid inside the catheter (if the liquid has high viscosity or contains suspended matter) may be undetectable. |
| Light source (maximum emission wavelength) | GaAs infrared light-emitting diode (940nm) |
| Action indicator light | The GaP (red LED: maximum emission wavelength 700nm) lights up when light is applied. |
| power supply voltage | DC12~24V ±10% ripple (pp) below 5% |
| Consume current | Average value below 30mA, maximum value below 80mA |
| Control output | Load power supply voltage DC 5~24V, load current below 100mA; NPN open collector output type |
| Use of ambient illuminance | Incandescent lamps and sunlight: each below 3,000 lx |
| Ambient temperature range | Operating temperature: -10 to 55℃; Storage temperature: -25 to 65℃ (no freezing or condensation). |
| Ambient humidity range | Operating temperature: 5~85%RH; Storage temperature: 5-95%RH (no condensation) |
| Vibration (Durability) | 10~500Hz, single amplitude 1.0mm, or acceleration 150m/s², 3 frequency sweeps in each of the X, Y, and Z directions (11min/sweep). |
| Impact (Durability) | 500m/s, 3 times in each of the X, Y, and Z directions |
| Protective structure | IEC standard IP50 |
| Connection method | Lead-out type (standard conductor length 1m) |
| Weight (after packaging) | Approximately 55g |
