Area light curtain sensor

▶ Product Introduction

With complete certifications, including ISO9100 quality management system certification, CE, PLe, PLd, REACH, EMC, RoHS, FCC certifications and test reports.
The system employs CPU self-testing to ensure that it does not send error signals to the controlled equipment when the light curtain itself malfunctions (e.g., asynchronous light sources, insufficient light intensity, faulty light projection drive circuit, CPU error, etc.), thus ensuring the safety of the light curtain.
It adopts dual independent redundant outputs, which enables automatic fault prevention with a high degree of safety, and can directly activate safety relays and safety PLCs.
External relay contact adhesion protection (EDM) function
The response time is within 5ms; self-test: within 2 seconds of power-on, a self-test is performed to ensure that there are no faults.
It features power-on delay function and shielding (floating/fixed blanking) function.
Unique optical synchronization technology replaces traditional data cable synchronization, avoiding signal interference and eliminating the need for long data cable connections.
Standard products offer 2mm hardware accuracy and 1mm software cross-algorithm accuracy.
Protection rating IP65

▶ Product Series

Product Series	HTS	HTC	HTF	HTP	HTL
Features	General-purpose type	compact	Ultra-thin front	plastic casing	Ultra-thin sides
Cross-sectional dimensions	29X30	21X25	13X28	13X30	16X29
Optical axis spacing	1mm/2mm/5mm/10mm/20mm/40mm	1mm/2mm/5mm/10mm/20mm/40mm	1mm/2mm/5mm/10mm/20mm/40mm	20mm	10mm/20mm/40mm
Protection width	0.2-7m	0.2-7m	0.2-3m	0.2-3m	0.2-3m
power supply voltage	24V ± 10%	24V ± 10%	24V ± 10%	24V ± 10%	24V ± 10%
power	3~8W	3~8W	3~8W	3~8W	3~8W
Response time	≤ 10ms	≤ 10ms	≤ 10ms	≤ 10ms	≤ 10ms
Signal output	NPN, PNP, relay	NPN, PNP, relay	NPN, PNP, relay	NPN、PNP	NPN、PNP
light curtain form	Preset optical synchronization, optional line synchronization	Preset optical synchronization, optional line synchronization	Preset optical synchronization, optional line synchronization	Preset optical synchronization, optional line synchronization	Preset optical synchronization, optional line synchronization
Standard wiring	Pigtail type aircraft plug	Direct outgoing line 2m	Pigtail type aircraft plug	Direct outgoing line 2m	Pigtail type aircraft plug

TOP

Zone Light Curtain - Standard HTS

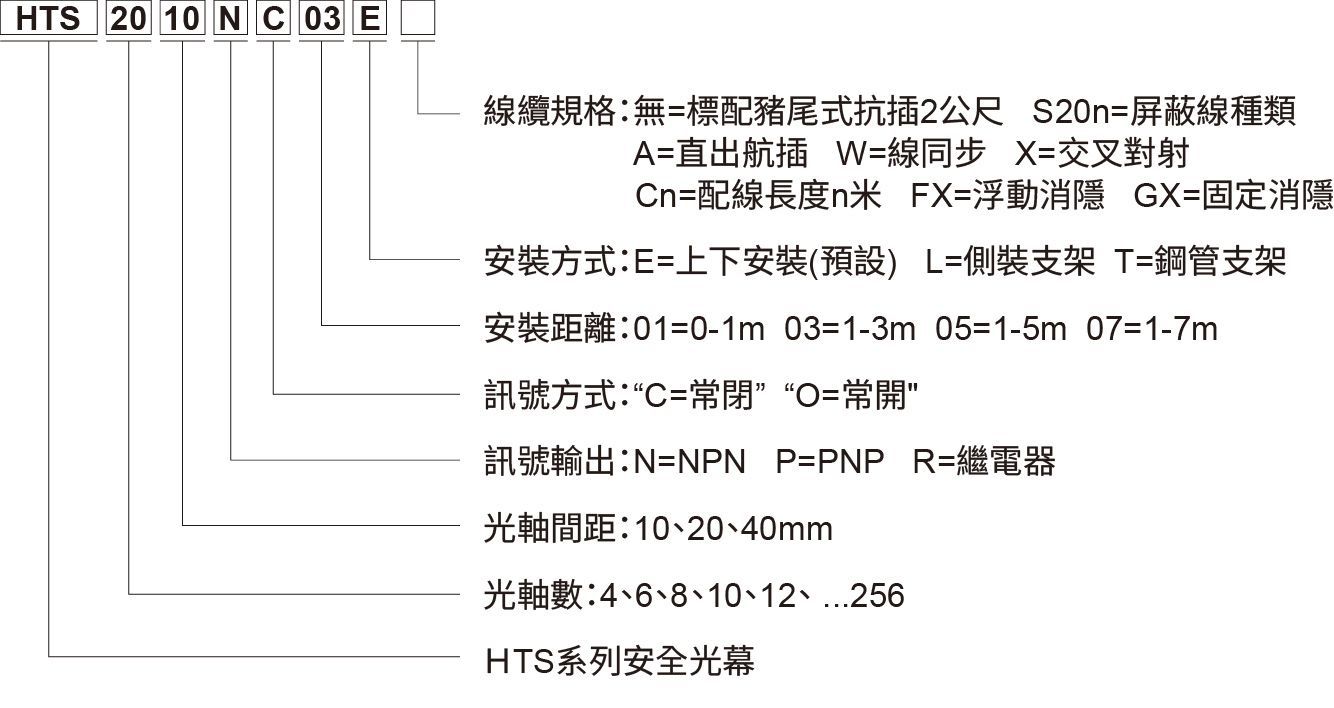

▶ Naming Rules

Download Product Introduction

▶ Product Specifications

Optical axis spacing	10mm	10mm	10mm	20mm	20mm	20mm	40mm	40mm	40mm
Optical axis number	model	Protection height	Total height	model	Protection height	Total height	model	Protection height	Total height
4	HTS0410	30	84	HTS0420	60	104	HTS0440	120	184
6	HTS0610	50	84	HTS0620	100	144	HTS0640	200	264
8	HTS0810	70	104	HTS0820	140	184	HTS0840	280	344
10	HTS1010	90	124	HTS1020	180	224	HTS1040	360	424
12	HTS1210	110	144	HTS1220	220	264	HTS1240	440	504
14	HTS1410	130	164	HTS1420	260	304	HTS1440	520	584
16	HTS1610	150	184	HTS1620	300	344	HTS1640	600	664
18	HTS1810	170	204	HTS1820	340	384	HTS1840	680	744
20	HTS2010	190	224	HTS2020	380	424	HTS2040	760	824
22	HTS2210	210	244	HTS2220	420	464	HTS2240	840	904
24	HTS2410	230	264	HTS2420	460	504	HTS2440	920	984
26	HTS2610	250	284	HTS2620	500	544	HTS2640	1000	1064
28	HTS2810	270	304	HTS2820	540	584	HTS2840	1080	1144
30	HTS3010	290	324	HTS3020	580	624	HTS3040	1160	1224
32	HTS3210	310	344	HTS3220	620	664	HTS3240	1240	1304
34	HTS3410	330	364	HTS3420	660	704	HTS3440	1320	1384
36	HTS3610	350	384	HTS3620	700	744	HTS3640	1400	1464
38	HTS3810	370	404	HTS3820	740	784	HTS3840	1480	1544
40	HTS4010	390	424	HTS4020	780	824	HTS4040	1560	1624
42	HTS4210	410	444	HTS4220	820	864	HTS4240	1640	1704
44	HTS4410	430	464	HTS4420	860	904	HTS4440	1720	1784
46	HTS4610	450	484	HTS4620	900	944	HTS4640	1800	1864
48	HTS4810	470	504	HTS4820	940	984	HTS4840	1880	1944
50	HTS5010	490	524	HTS5020	980	1024	HTS5040	1960	2024
52	HTS5210	510	544	HTS5220	1020	1064	HTS5240	2040	2104
54	HTS5410	530	564	HTS5420	1060	1104	HTS5440	2120	2184
56	HTS5610	550	584	HTS5620	1100	1144	HTS5640	2200	2264
58	HTS5810	570	604	HTS5820	1140	1184	HTS5840	2280	2344
60	HTS6010	590	624	HTS6020	1180	1224	HTS6040	2360	2424

*This model has multiple optical axis pitches of 10mm, 20mm, and 40mm, which are not fully represented in the selection table. If your selection is not listed, you can refer to the selection rules or contact us to select a model for you.

TOP

Zone Light Screen - Front Ultra-thin HTF

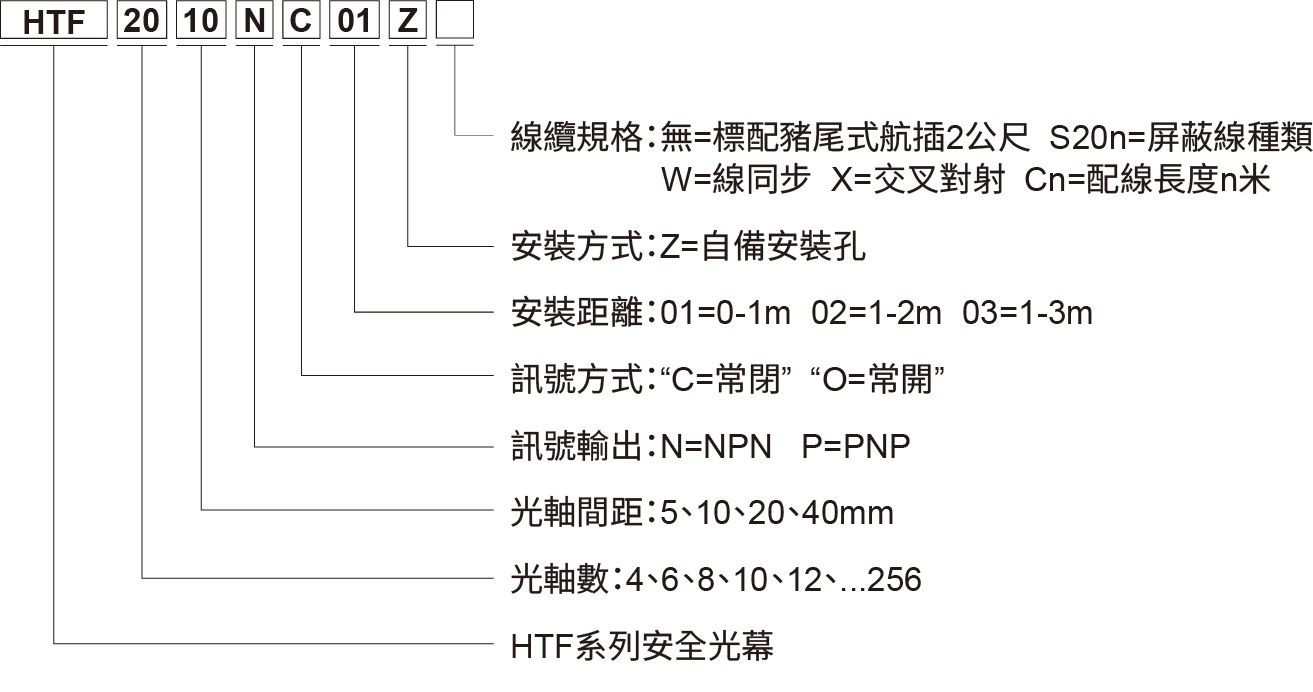

▶ Naming Rules

Download Product Introduction

▶ Product Specifications

Optical axis spacing	10mm	10mm	10mm	20mm	20mm	20mm	40mm	40mm	40mm
Optical axis number	model	Protection height	Total height	model	Protection height	Total height	model	Protection height	Total height
4	HTF0410	30	86	HTF0420	60	106	HTF0440	120	186
6	HTF0610	50	86	HTF0620	100	146	HTF0640	200	266
8	HTF0810	70	106	HTF0820	140	186	HTF0840	280	346
10	HTF1010	90	126	HTF1020	180	226	HTF1040	360	426
12	HTF1210	110	146	HTF1220	220	266	HTF1240	440	506
14	HTF1410	130	166	HTF1420	260	306	HTF1440	520	586
16	HTF1610	150	186	HTF1620	300	346	HTF1640	600	666
18	HTF1810	170	206	HTF1820	340	386	HTF1840	680	746
20	HTF2010	190	226	HTF2020	380	426	HTF2040	760	826
22	HTF2210	210	246	HTF2220	420	466	HTF2240	840	906
24	HTF2410	230	266	HTF2420	460	506	HTF2440	920	986
26	HTF2610	250	286	HTF2620	500	546	HTF2640	1000	1066
28	HTF2810	270	306	HTF2820	540	586	HTF2840	1080	1146
30	HTF3010	290	326	HTF3020	580	626	HTF3040	1160	1226
32	HTF3210	310	346	HTF3220	620	666	HTF3240	1240	1306
34	HTF3410	330	366	HTF3420	660	706	HTF3440	1320	1386
36	HTF3610	350	386	HTF3620	700	746	HTF3640	1400	1466
38	HTF3810	370	406	HTF3820	740	786	HTF3840	1480	1546
40	HTF4010	390	426	HTF4020	780	826	HTF4040	1560	1626
42	HTF4210	410	446	HTF4220	820	866	HTF4240	1640	1706
44	HTF4410	430	466	HTF4420	860	906	HTF4440	1720	1786
46	HTF4610	450	486	HTF4620	900	946	HTF4640	1800	1866
48	HTF4810	470	506	HTF4820	940	986	HTF4840	1880	1946
50	HTF5010	490	526	HTF5020	980	1026	HTF5040	1960	2026
52	HTF5210	510	546	HTF5220	1020	1066	HTF5240	2040	2106
54	HTF5410	530	566	HTF5420	1060	1106	HTF5440	2120	2186
56	HTF5610	550	586	HTF5620	1100	1146	HTF5640	2200	2266
58	HTF5810	570	606	HTF5820	1140	1186	HTF5840	2280	2346
60	HTF6010	590	626	HTF6020	1180	1226	HTF6040	2360	2426

*This model has multiple optical axis pitch options, including 5mm, 10mm, 20mm, and 40mm, which are not all listed in the selection table. If your desired model is not among them, please contact us for assistance.

Except for 0805 and 0410, the total height of all products in this series = (optical axis spacing * number of optical axes) 26mm

TOP

Zone Light Curtain - Ultra-thin HTL on the Side

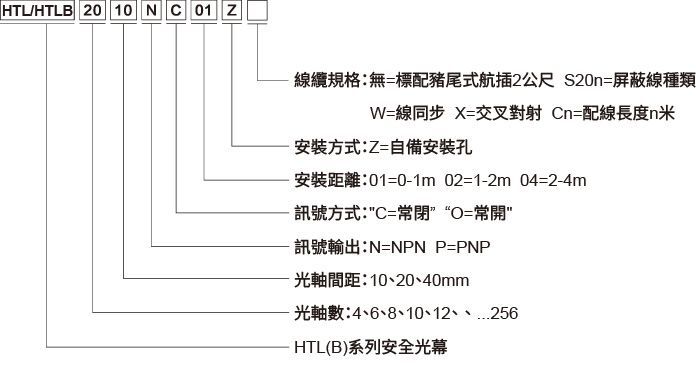

▶ Naming Rules

Download Product Introduction

▶ Product Specifications

Optical axis spacing	10mm	10mm	10mm	20mm	20mm	20mm	40mm	40mm	40mm
Optical axis number	model	Protection height	Total height	model	Protection height	Total height	model	Protection height	Total height
4	HTL0410	30	101	HTL0420	60	101	HTL0440	120	181
6	HTL0610	50	101	HTL0620	100	141	HTL0640	200	261
8	HTL0810	70	101	HTL0820	140	181	HTL0840	280	341
10	HTL1010	90	121	HTL1020	180	221	HTL1040	360	421
12	HTL1210	110	141	HTL1220	220	261	HTL1240	440	501
14	HTL1410	130	161	HTL1420	260	301	HTL1440	520	581
16	HTL1610	150	181	HTL1620	300	341	HTL1640	600	661
18	HTL1810	170	201	HTL1820	340	381	HTL1840	680	741
20	HTL2010	190	221	HTL2020	380	421	HTL2040	760	821
22	HTL2210	210	241	HTL2220	420	461	HTL2240	840	901
24	HTL2410	230	261	HTL2420	460	501	HTL2440	920	981
26	HTL2610	250	281	HTL2620	500	541	HTL2640	1000	1061
28	HTL2810	270	301	HTL2820	540	581	HTL2840	1080	1141
30	HTL3010	290	321	HTL3020	580	621	HTL3040	1160	1221
32	HTL3210	310	341	HTL3220	620	661	HTL3240	1240	1301
34	HTL3410	330	361	HTL3420	660	701	HTL3440	1320	1381
36	HTL3610	350	381	HTL3620	700	741	HTL3640	1400	1461
38	HTL3810	370	401	HTL3820	740	781	HTL3840	1480	1541
40	HTL4010	390	421	HTL4020	780	821	HTL4040	1560	1621
42	HTL4210	410	441	HTL4220	820	861	HTL4240	1640	1701
44	HTL4410	430	461	HTL4420	860	901	HTL4440	1720	1781
46	HTL4610	450	481	HTL4620	900	941	HTL4640	1800	1861
48	HTL4810	470	501	HTL4820	940	981	HTL4840	1880	1941
50	HTL5010	490	521	HTL5020	980	1021	HTL5040	1960	2021
52	HTL5210	510	541	HTL5220	1020	1061	HTL5240	2040	2101
54	HTL5410	530	561	HTL5420	1060	1101	HTL5440	2120	2181
56	HTL5610	550	581	HTL5620	1100	1141	HTL5640	2200	2261
58	HTL5810	570	601	HTL5820	1140	1181	HTL5840	2280	2341
60	HTL6010	590	621	HTL6020	1180	1221	HTL6040	2360	2421

*The table shows the parameters for the HTLA type. The protection height for the HTLB type is the same as that for the A type, and the total length = the total length of the A type 5mm.

This product model has multiple optical axis pitches, including 10mm, 20mm, and 40mm. If you cannot find the model you want in the table, please refer to the selection rules or contact us.

We can customize zone light curtains with corresponding protection heights according to customer needs.

TOP

Zone Light Curtain - Plastic Shell HTP

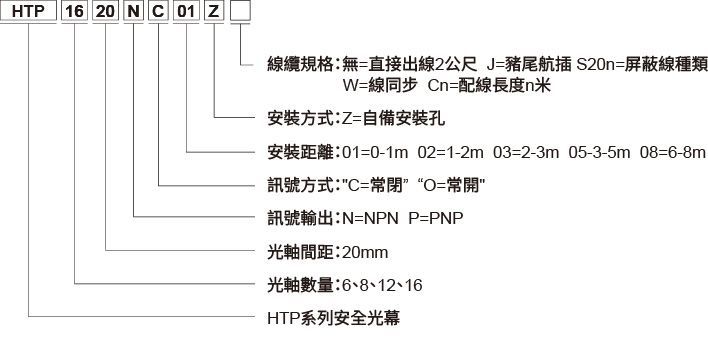

▶ Naming Rules

Download Product Introduction

▶ Product Specifications

Optical axis spacing	20mm	20mm	20mm
Optical axis number	model	Protection height	Total height
6	HTP0620	100	140
8	HTP0820	140	190
12	HTP1220	220	270
16	HTP1620	300	350

TOP

Zone Light Screen - Compact HTC

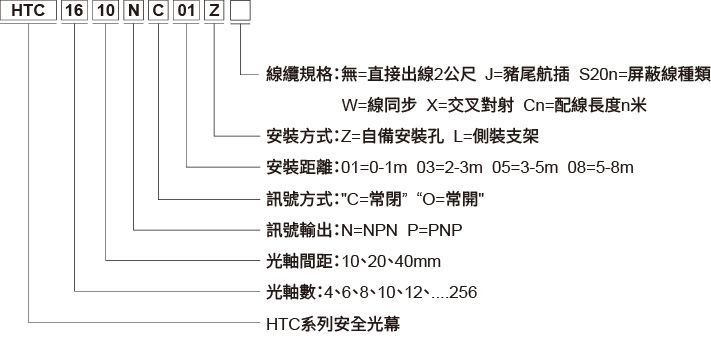

▶ Naming Rules
