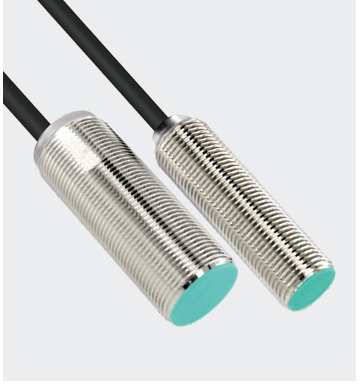

Hall effect proximity switch
▶ Product Features
- Standard configuration includes three protection circuits
- Solid interior, fully epoxy resin filled, waterproof, oil-proof, and heat-resistant.
- Made of nickel-plated brass, it has strong anti-interference capabilities.
- Stable transmission, sturdy and durable, tangle-free
- Polarity protection, short circuit protection, overload protection
- The action indicator lights are clearly visible from multiple angles.
- Outstanding shock/vibration resistance
- Four sizes are available, all meeting national standard specifications: M8 / M12 / M18 / M30
▶ Product Specifications
| kinds | Hall switch M8 flush | Hall switch M12 flush | Hall switch M18 flush | Hall switch M30 flush |
|---|---|---|---|---|
| Model NPN | HL-0820-E1 (Normally Open) | HL-1220-E1 (Normally Open) | HL-1820-E1 (Normally Open) | HL-3020-E1 (Normally Open) |
| Model NPN | HL-0820-E2 (Normally Closed) | HL-1220-E2 (Normally Closed) | HL-1820-E2 (Normally Closed) | HL-3020-E2 (Normally Closed) |
| Model PNP | HL-0820-P1 (Normally Open) | HL-1220-P1 (Normally Open) | HL-1820-P1 (Normally Open) | HL-3020-P1 (Normally Open) |
| Model PNP | HL-0820-P2 (Normally Closed) | HL-1220-P2 (Normally Closed) | HL-1820-P2 (Normally Closed) | HL-3020-P2 (Normally Closed) |
| Rated operating voltage | DC10~30V | DC10~30V | DC10~30V | DC10~30V |
| Detection distance | 20mm (fixed magnet strength) | 20mm (fixed magnet strength) | 20mm (fixed magnet strength) | 20mm (fixed magnet strength) |
| External Specifications | M8x1.0x40mm | M12x1.0x40mm | M18x1.0x40mm | M30x1.5x45mm |
| Residual voltage | <1V | <1V | <1V | <1V |
| Hysteresis range | <15%(額定標稱檢測距離) | <15%(額定標稱檢測距離) | <15%(額定標稱檢測距離) | <15%(額定標稱檢測距離) |
| Operation frequency | 1500Hz | 1500Hz | 1000Hz | 1000Hz |
| wire diameter | 3.8mm | 3.8mm | 4.8mm | 4.8mm |
| Consume current | <10mA | <10mA | <10mA | <10mA |
| Load current | 200mA MAX | 200mA MAX | 200mA MAX | 200mA MAX |
| Insulation resistance | >50MR(500VDC) | >50MR(500VDC) | >50MR(500VDC) | >50MR(500VDC) |
| Duplicate accuracy | ≤3% | ≤3% | ≤3% | ≤3% |
| LED display | Action indicator light (red) | Action indicator light (red) | Action indicator light (red) | Action indicator light (red) |
| Protect | Polarity protection, short circuit protection/overload protection | Polarity protection, short circuit protection/overload protection | Polarity protection, short circuit protection/overload protection | Polarity protection, short circuit protection/overload protection |
| Operating temperature | -20- 70℃ | -20- 70℃ | -20- 70℃ | -20- 70℃ |
| Temperature drift | <±10% | <±10% | <±10% | <±10% |
| Connection method | Lead-out type (standard lead wire length 2m), special (PUR customizable) drag chain cable | Lead-out type (standard lead wire length 2m), special (PUR customizable) drag chain cable | Lead-out type (standard lead wire length 2m), special (PUR customizable) drag chain cable | Lead-out type (standard lead wire length 2m), special (PUR customizable) drag chain cable |
| Shell material | The outer casing is made of copper-plated nickel-plated PBT process plastic. | The outer casing is made of copper-plated nickel-plated PBT process plastic. | The outer casing is made of copper-plated nickel-plated PBT process plastic. | The outer casing is made of copper-plated nickel-plated PBT process plastic. |
| Protection level | IP67 | IP67 | IP67 | IP67 |
