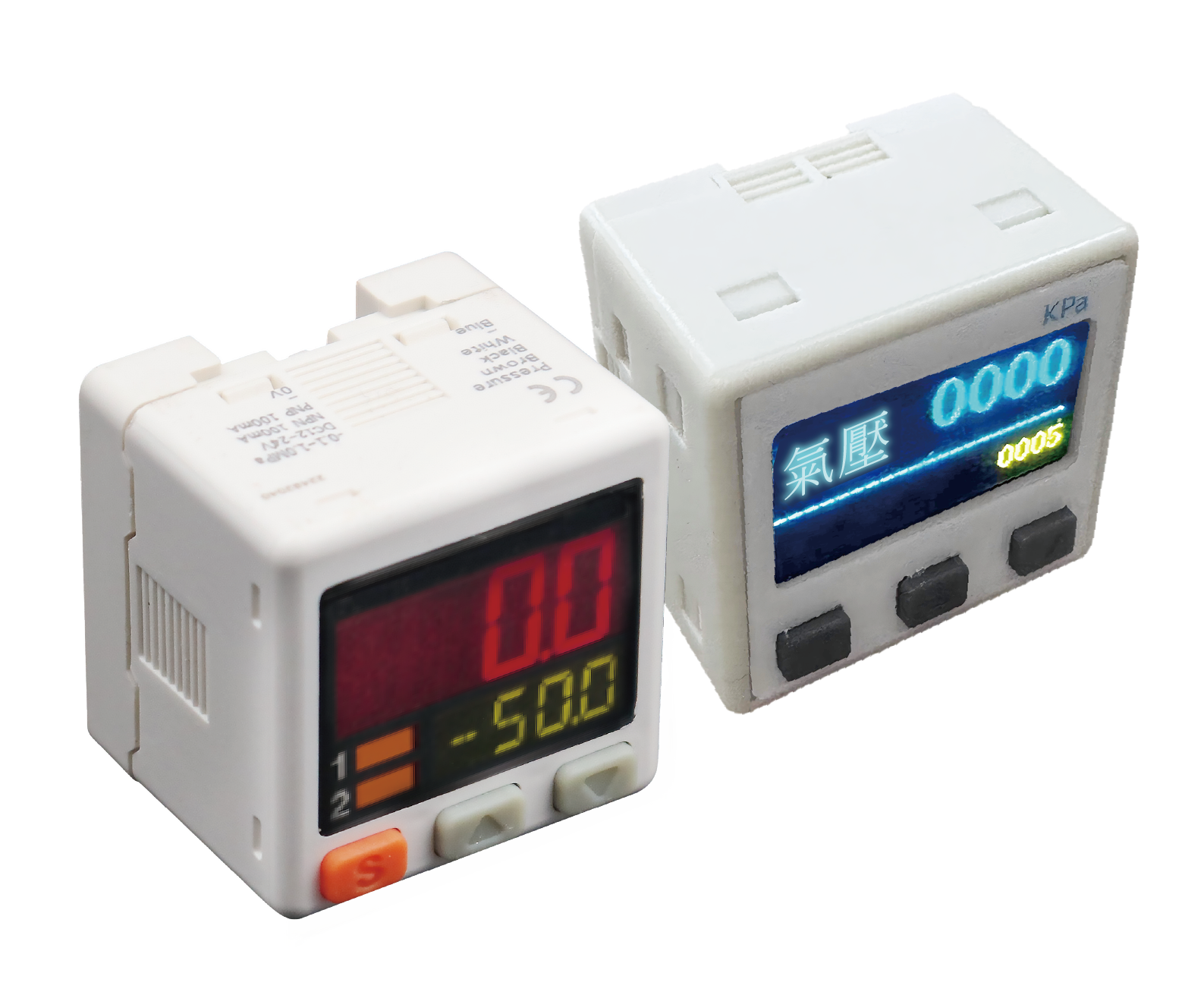

pressure sensor
▶ Product Features
- The settings are clear at a glance.
- Display the DP-100 settings digitally.
- The settings can be easily understood through numerical data, which is helpful for maintenance via telephone.
▶ Product Categories
| kinds | Low voltage | High voltage |
|---|---|---|
| LED digital display | HS-DP001 | HS-DP002 |
| Chinese LCD display | HS-DP101 | HS-DP102 |
| Rated pressure range | -100~ 100 KPa | -100~ 1000KPa |
| Set pressure range | -101~ 101KPa | -101~ 1010KPa |
| Pressure resistance | 500 KPa | 1500KPa |
| power supply voltage | 12~24VDC±10% | Pulsating P-P below 10% |
| Duplicate accuracy | ±0.1%FS (within ±2digits) | ±0.2%FS (within ±2digits) |
▶ Product Specifications
| Compliant Standards and Certifications | EMC Directive, RoHS Directive |
|---|---|
| Output | NPN/PNP dual output |
| Applicable fluids | non-corrosive gases |
| Power consumption | Normal power consumption: 720mW or less (current consumption less than 30mA when the power supply voltage is 24V). ECO mode: STD power consumption: 480mW or less (current consumption less than 20mA when the power supply voltage is 24V), FULL power consumption: 360mW or less (current consumption less than 15mA when the power supply voltage is 24V). |
| Comparative Export | <NPN輸出型>Maximum current flowing into the NPN open-collector transistor: 100mA; Applied voltage: below 30VDC (between comparator output and 0V); Residual voltage: below 2V (when the current flowing into the transistor is 100mA).<PNP輸出型> Maximum outflow current of PNP open-collector transistor: 100mA; Applied voltage: below 30VDC (between comparator output and V); Residual voltage: below 2V (when source current is 100mA). |
| Export operations | Select NO/NC using the button operation. |
| Output mode | EASY mode / Differential mode / Window comparison mode |
| Response | Minimum 1 digit (variable) |
| reaction time | The timeout values of 2.5ms, 5ms, 10ms, 25ms, 50ms, 100ms, 250ms, 500ms, 1000ms, and 5000ms can be selected via button operation. |
| Protective structure | IP40(IEC) |
| Operating ambient temperature | -10℃~50℃ (do not allow freezing), storage temperature: -10~ 60℃ |
| ambient humidity | Storage temperature: 35-85% RH (Note: condensation and freezing must be avoided). |
| Withstand voltage | AC 1,000V for 1 minute, between all power connection terminals and the casing. |
| Insulation resistance | A high resistance meter of 50MΩ or higher based on DC500V is required between all power connection terminals and the casing. |
| Vibration resistant | Frequency 10~500Hz, double amplitude 3mm or maximum velocity 196m/s², 2 hours each in X, Y and Z directions. |
| Material | Housing: PBT; LCD display: Acrylic; Pressure port: SUS303; Mounting thread: Brass (silver coin); Switch: Silicon rubber |
| Connection method | Connector connection |
