Automated Sensors

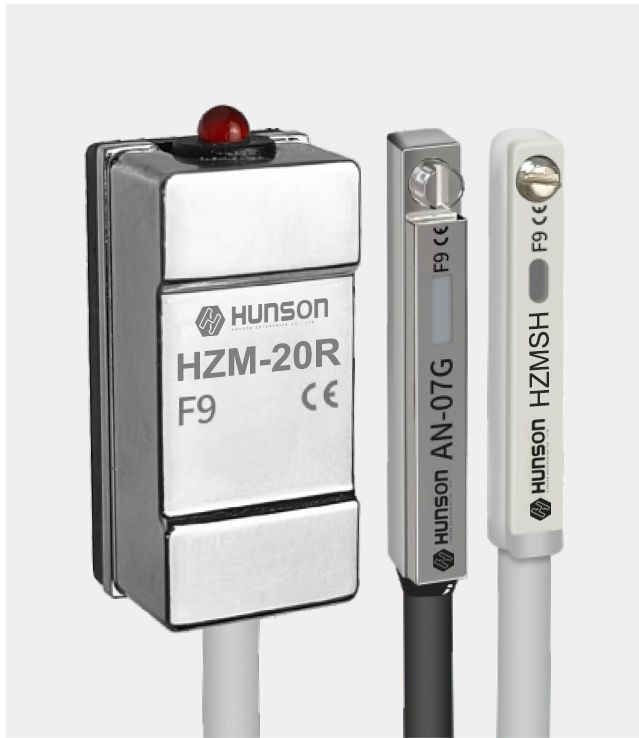

Magnetic switch

▶ Product Features
  • Magnetic induction limit sensor
  • Standard configuration includes three protection circuits
  • Surge current protection, short circuit protection, reverse polarity protection
  • Professionally made canister, waterproof, oil-proof, and heat-resistant.
  • Fast response frequency and strong anti-interference capability
  • Stable transmission, robust and durable, tangle-free
  • The motion indicator lights are clearly visible from multiple angles.

▶ Product Specifications - HSJ Series

model HRMSJ
Inductive switch type STSP normally open type
Operating voltage range (V) Contact reed switch type
Maximum switching current (mA) 5-240V ACDC
Maximum contact capacity (W) 100
Internal current consumption Max.10
Residual pressure drop 2.5v Max.@100mA DC
cable Φ3.3, 2 meters, gray oil-resistant PVC (flame retardant)
Sensitivity (Gauss) 60-70
Maximum switching frequency (Hz) 200
Counterbalancing force (m/s') 300
Seismic resistance (m/s') 90
Operating temperature range (C) ① -10-70
Protection level IP67(NEMA6)

▶ Product Specifications - HSH Series

model HRMSH HZMSH HZMSHN HZMSHP
Wiring method 2-line 2-line 3-line 3-line
Switching logic SPST normally open Electronic contactless, normally open type Electronic contactless, normally open type Electronic contactless, normally open type
Output contact type There is a contact point No contact Non-contact NPN type Non-contact PNP type
Operating voltage range 5~240V DC/AC 10~30V DC 10~30V DC 10~30V DC
Maximum switching current 100mA max. 50mA max. 100mA max. 100mA max.
Contact capacity (Note 1) 10W max. 1.5W max. 3W max. 3W max.
Consume current - - 8mA @24V DC max. 8mA @24V DC max.
Internal voltage drop 3.5V max 3.5V max. 1.5V max. 1.5V max.
Leakage current - 0.1mA(40uA) max. 0.01mA max. 0.01mA max.
Indicator light color Red LED Red LED Red LED Red LED
electric wire Φ 3.2, 2C, PVC Φ 3.2, 2C, PVC Φ 3.2, 3C, PVC Φ 3.2, 3C, PVC
Maximum switching frequency 200Hz 1000Hz 1000Hz 1000Hz
Induced magnetic field strength (Note 2) 70 Gauss 60 Gauss 60 Gauss 60 Gauss
Operating temperature range -10~70℃ -10~70℃ -10~70℃ -10~70℃
Impact resistance (Note 3) 30G 50G 50G 50G
Vibration resistant (Note 4) 9G 9G 9G 9G
Protection structure level IEC 60529 IP67 IEC 60529 IP67 IEC 60529 IP67 IEC 60529 IP67
Protection circuit (Note 5) 1 2,3,4 2,3,4 2,3,4

▶ Product Specifications - HSG Series

model HRMSG HZMSG HZMSGN HZMSGP
Wiring method 2-line 2-line 3-line 3-line
Switching logic SPST normally open Electronic contactless, normally open type Electronic contactless, normally open type Electronic contactless, normally open type
Output contact type No contact Non-contact NPN type Non-contact PNP type
Operating voltage range 5~240V DC/AC 10~30V DC 10~30V DC 10~30V DC
Maximum switching current 100mA max. 50mA max. 100mA max. 100mA max.
Contact capacity (Note 1) 10W max. 1.5W max. 3W max. 3W max.
Consume current - - 8mA @24V DC max. 8mA @24V DC max.
Internal voltage drop 3.5V max 3.5V max. 1.5V max. 1.5V max.
Leakage current - 0.1mA(40uA) max. 0.01mA max. 0.01mA max.
Indicator light color Red LED Red LED Red LED Red LED
electric wire Φ 3.2, 2C, PVC Φ 3.2, 2C, PVC Φ 3.2, 3C, PVC Φ 3.2, 3C, PVC
Maximum switching frequency 200Hz 1000Hz 1000Hz 1000Hz
Induced magnetic field strength (Note 2) 70 Gauss 60 Gauss 60 Gauss 60 Gauss
Operating temperature range -10~70℃ -10~70℃ -10~70℃ -10~70℃
Impact resistance (Note 3) 30G 50G 50G 50G
Vibration resistant (Note 4) 9G 9G 9G 9G
Protection structure level IEC 60529 IP67 IEC 60529 IP67 IEC 60529 IP67 IEC 60529 IP67
Protection circuit (Note 5) 1 2,3,4 2,3,4 2,3,4
