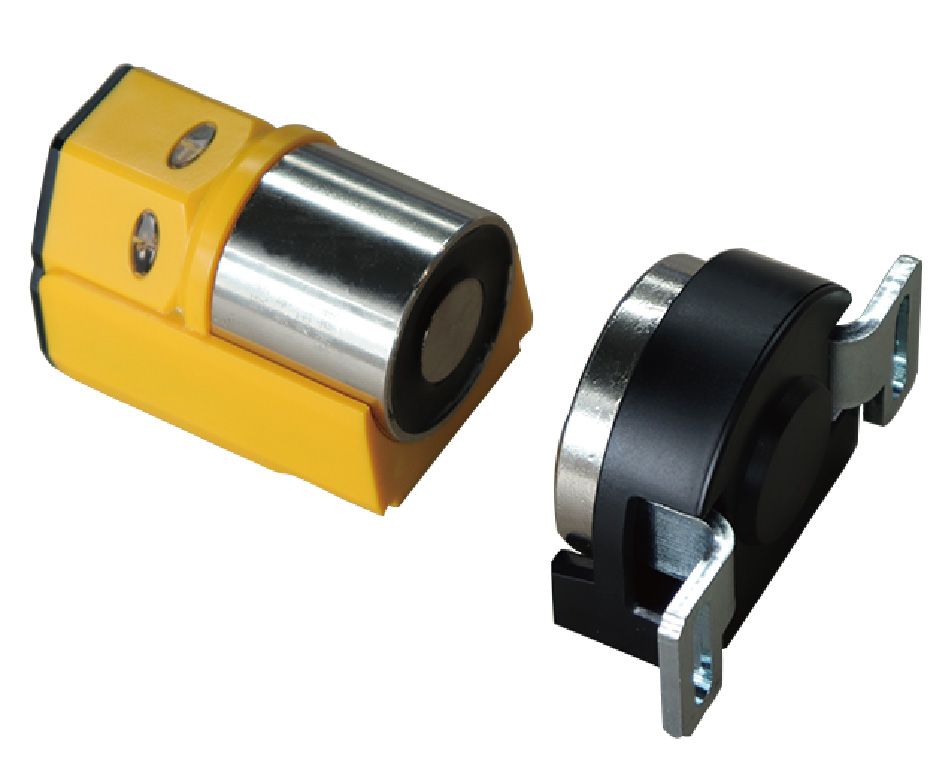

Electromagnetic locking safety door lock
▶ Product Features
- Easily and tightly locked through electromagnetic force
- This product features a planar electromagnetic locking structure, which effectively solves the door offset problem.
- The HT-M50 series not only has no pins and a simple structure, but also features dual-channel RFID electronic password identification, which greatly improves security.
- Easy to install, ultra-compact design eliminates the hassle of finding an installation location; it can be used even in confined spaces.
▶ Product Specifications
| RFID Radio Frequency Identification Model | HT-M50N | HT-M50P |
|---|---|---|
| Signal | Dual-path NPN | Dual-path PNP |
| Retention force during locking | 450N | 450N |
| Retention force when lock is released | Approximately 1N | Approximately 1N |
| Working distance (OFF → ON) | 2 mm | 2 mm |
| Response time (ms) Lock-to-unlock | 250 ms | 250 ms |
| Response time (ms) Lock/Unlock - Lock | 50 ms | 50 ms |
| Output type | Transistor output x 2 | Transistor output x 2 |
| Maximum load current | 100 mA | 100 mA |
| Residual voltage (when ON) | Maximum 2V (with a 2m cable) | Maximum 2V (with a 2m cable) |
| Voltage when OFF | Maximum 2.0V (with 5m cable) | Maximum 2.0V (with 5m cable) |
| External import | Approximately 2mA | Approximately 2mA |
| Locking control input | Approximately 2.5mA | Approximately 2.5mA |
| Security Certification | CE SIL3 | CE SIL3 |
| Protection circuit | Power reverse connection protection, output short circuit protection, output surge protection, output reverse connection protection | Power reverse connection protection, output short circuit protection, output surge protection, output reverse connection protection |
| power supply voltage | 24 VDC ±20% including pulse (PP) 10% Class 2 | 24 VDC ±20% including pulse (PP) 10% Class 2 |
| Power consumption | 5W | 5W |
| Enclosure protection level | IP65 | IP65 |
| Operating ambient temperature | -20 to 55°C (non-freezing) | -20 to 55°C (non-freezing) |
| Storage ambient temperature | -25 to 70°C (non-freezing) | -25 to 70°C (non-freezing) |
| ambient humidity | 5% to 95% RH | 5% to 95% RH |
| earthquake resistance | 10 to 55 Hz, dual amplitude 2.0 mm, 5 minutes in each of the X, Y, and Z directions (IEC 60947-5-3) | 10 to 55 Hz, dual amplitude 2.0 mm, 5 minutes in each of the X, Y, and Z directions (IEC 60947-5-3) |
| Impact resistance | 30GX, Y, Z directions, 6 times each (IEC 60947-5-3) | 30GX, Y, Z directions, 6 times each (IEC 60947-5-3) |
Non-contact RFID safety switch
▶ Product Introduction
- The HT-RE13 series safety switches are designed using radio frequency RFID technology, featuring high security and confidentiality (unique codes are available), strong anti-interference capabilities, and stable reliability. Alternatively, they can combine magnetic codes from multiple magnetically sensitive elements, requiring their identification logic to be triggered in a specific sequence for proper operation.
- Non-contact execution, high misalignment tolerance, large detection range, easy installation, multiple units can be connected in series. HT-RE13-NP/HT-RE13-IO can be used with safety modules to achieve Level 4 safety, CE certified, and compliant with ISO13849-1 SIL3PLe. Category 4.
▶ Product Specifications
| model | HT-RE13-NP | HT-RE13-RF0 | HT-RE13-RF1 | HT-RE13-IO |
|---|---|---|---|---|
| signal method | Magnetic Encoding | High-frequency RFID radio frequency technology | High-frequency RFID radio frequency technology | reed switch contacts |
| Output method | NPN normally closed PNP normally closed | NPN normally closed PNP normally closed | NPN normally closed PNP normally closed | Two sets of independent normally closed contacts |
| Safety standards | ISO13849-1,IEC/EN60947-5-3 | ISO13849-1,IEC/EN60947-5-3 | ISO13849-1,IEC/EN60947-5-3 | ISO13849-1,IEC/EN60947-5-3 |
| Qualifying Method | Directly extending 2 meters, with a flight plug (-J) | Directly extending 2 meters, with a flight plug (-J) | Directly extending 2 meters, with a flight plug (-J) | Directly extending 2 meters, with a flight plug (-J) |
| working distance | On.Min:8mm; Off.Max:17mm | On.Min:8mm; Off.Max:17mm | On.Min:8mm; Off.Max:17mm | On.Min:8mm; Off.Max:17mm |
| Typical tolerance | Above or side | Above or side | Above or side | Above or side |
| Output current (maximum) | 100mA | 100mA | 100mA | 100mA |
| Response time | 5ms | 5ms | 5ms | 5ms |
| Protection level | IP67 | IP67 | IP67 | IP67 |
| Operating frequency | 10Hz | 10Hz | 10Hz | 10Hz |
| Operating temperature | -10~ 55℃ | -10~ 55℃ | -10~ 55℃ | -10~ 55℃ |
| relative humidity | 5%~95% | 5%~95% | 5%~95% | 5%~95% |
| Material | ABS PC | ABS PC | ABS PC | ABS PC |
Security door lock
▶ Product Introduction
- This product series features oxidation-resistant contacts that meet SIL3 and PLe mechanical safety certifications, making it suitable for safety door locks with standard and micro-loads.
- The wiring is simple, saves labor, and is easy to replace.
- A variety of metal heads are available.
▶ Product Specifications
| Power supply voltage | Electromagnetic coil DC24V / Indicator light DC24V / Contacts DC, AC10-230V |
|---|---|
| Certification Standards | Compliant with CE and PLe certifications |
| Forced disconnection force | Locking force of 1300N or more |
| Forced disconnection of pre-travel | 10mm or more |
| Contact resistance | Below 25mΩ |
| Minimum applicable load | DC5V 1mA resistive load (N-level reference value) |
| Rated insulation voltage (Ui) | 300V |
| Rated frequency | 50/60Hz |
| Electric shock protection level | Class II (Double Insulation) |
| Pollution level (usage environment) | 3 (EN60947-5-1) |
| Pulse withstand voltage between the same extreme sub-electrodes | 2.5 kV |
| Pulse withstand voltage between opposite ends | 4 kV |
| Between each terminal and the non-energized metal part | 6 kV |
| Insulation resistance | 100MΩ and above |
| Contact spacing | 2 x 2mm or more |
| Vibration resistance to malfunction | 10~55Hz, single amplitude 0.75mm |
| Impact resistance and durability | Above 1,000 m/s² |
| Impact resistance to malfunction | Above 300m/s2 |
| Conditional short-circuit current | 100A (EN60947-5-1) |
| Rated open thermal current (Ith) | 10A (EN60947-5-1) |
| Operating ambient temperature | -30~70℃ (no freezing) |
| ambient humidity | 95% or less |
| weight | Approximately 96g |
▶ Product Categories
| model | HT-D3NS | HT-D3SL-DS | HT-D3SL-DK | HT-D4NL-DS |
|---|---|---|---|---|
| kinds | Miniature safety door switch | Electromagnetic locking safety door switch | Electromagnetic locking safety door switch | Electromagnetic locking safety door switch |
| Interlocking type | 2 sets of normally open and 2 sets of normally closed contacts | 2 sets of normally open and 2 sets of normally closed contacts | 2 sets of normally open and 2 sets of normally closed contacts | 2 sets of normally open and 2 sets of normally closed contacts |
| Locking method | \ | Electromagnetic locking mechanical release | Mechanical locking and electromagnetic release | Electromagnetic locking mechanical release |

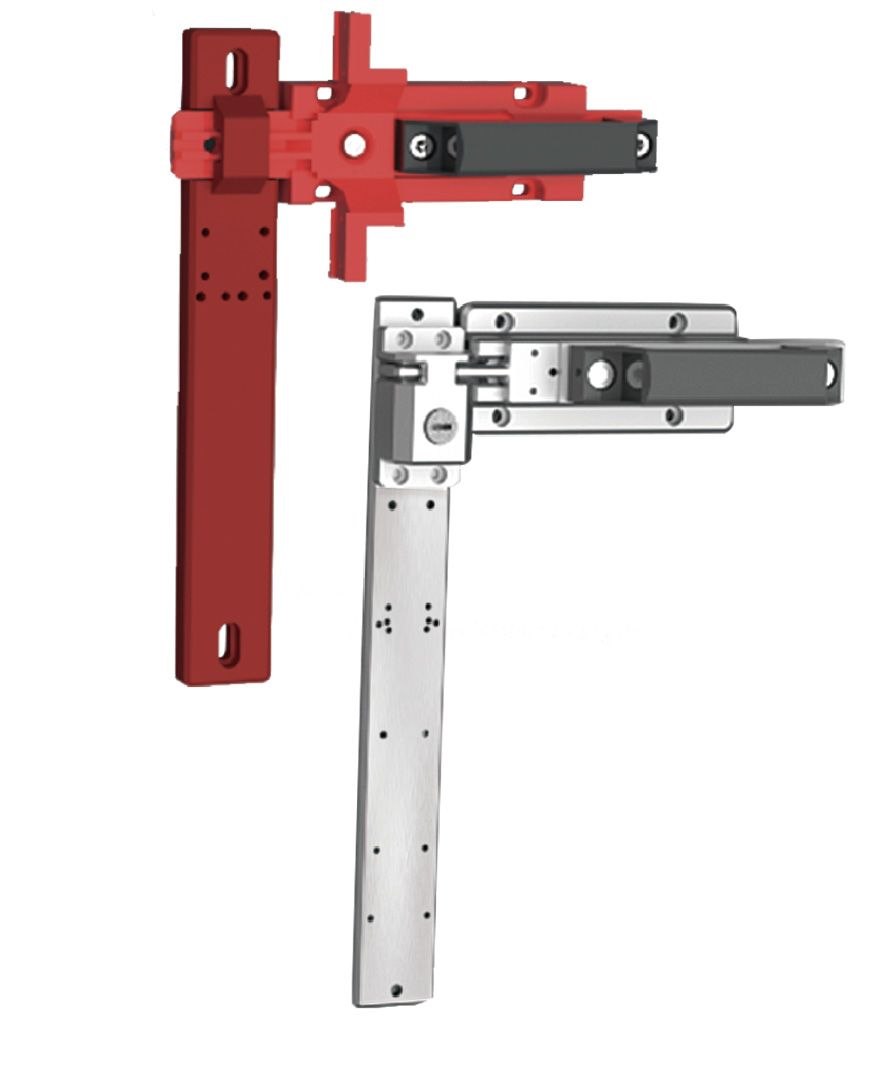

Door lock handle
▶ Product Features
- It can be used with both standard security door locks and electromagnetic locking security door locks.
- It comes with a dedicated key to effectively prevent accidental opening.
- Two levels of protection ensure the door remains securely locked or open.
- You can choose to have the handle on the left or right side.
▶ Product Specifications
| model | HT-NSK10 | HT-NSK20 |
|---|---|---|
| weight | Approximately 0.6 kg | Approximately 3.5 kg |
| Mechanical life | More than 20,000 times | More than 60,000 times |
| Material | Flame-retardant POM | aluminum alloy |
